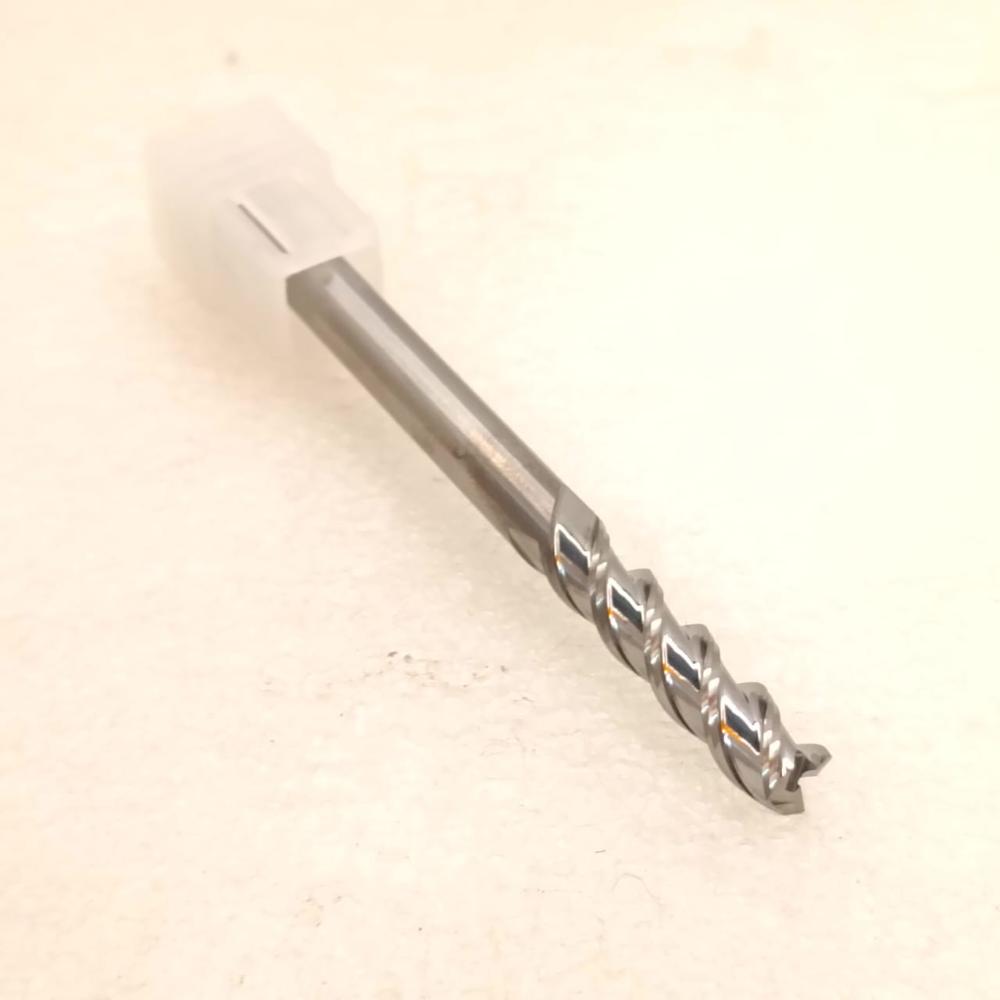

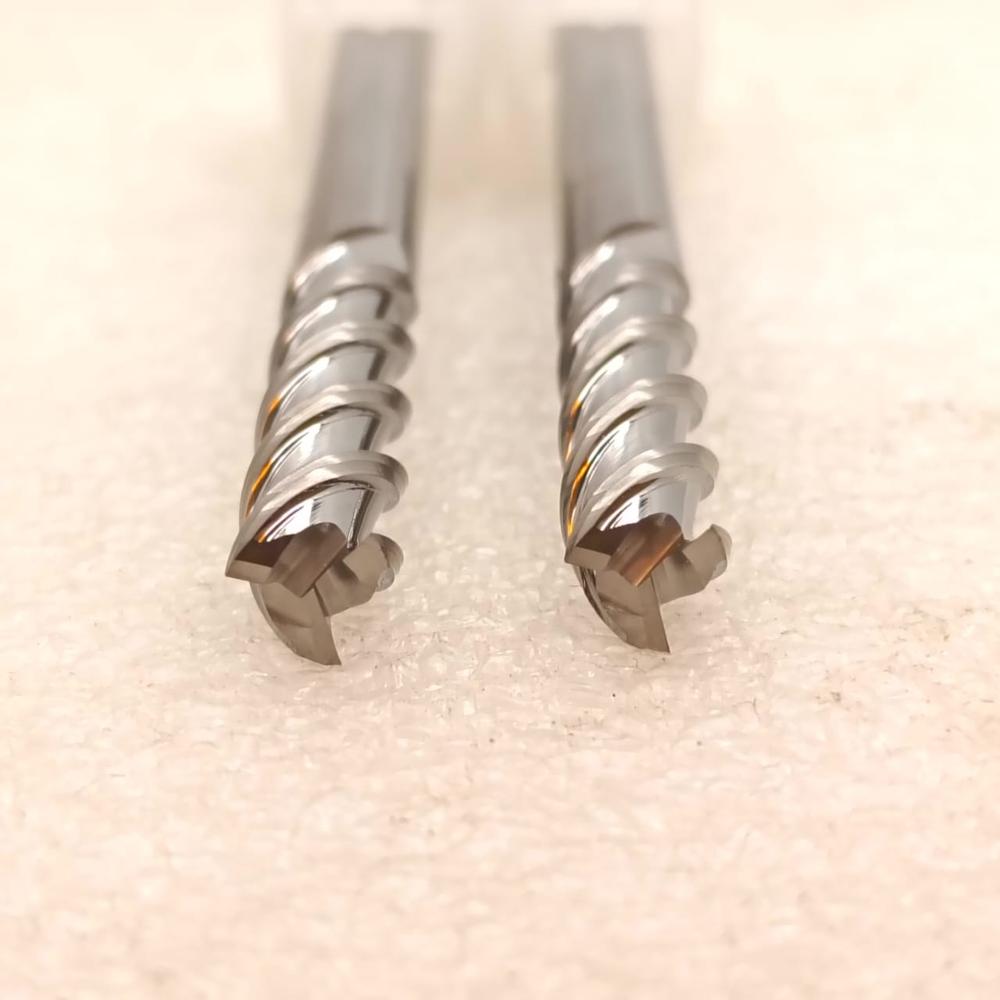

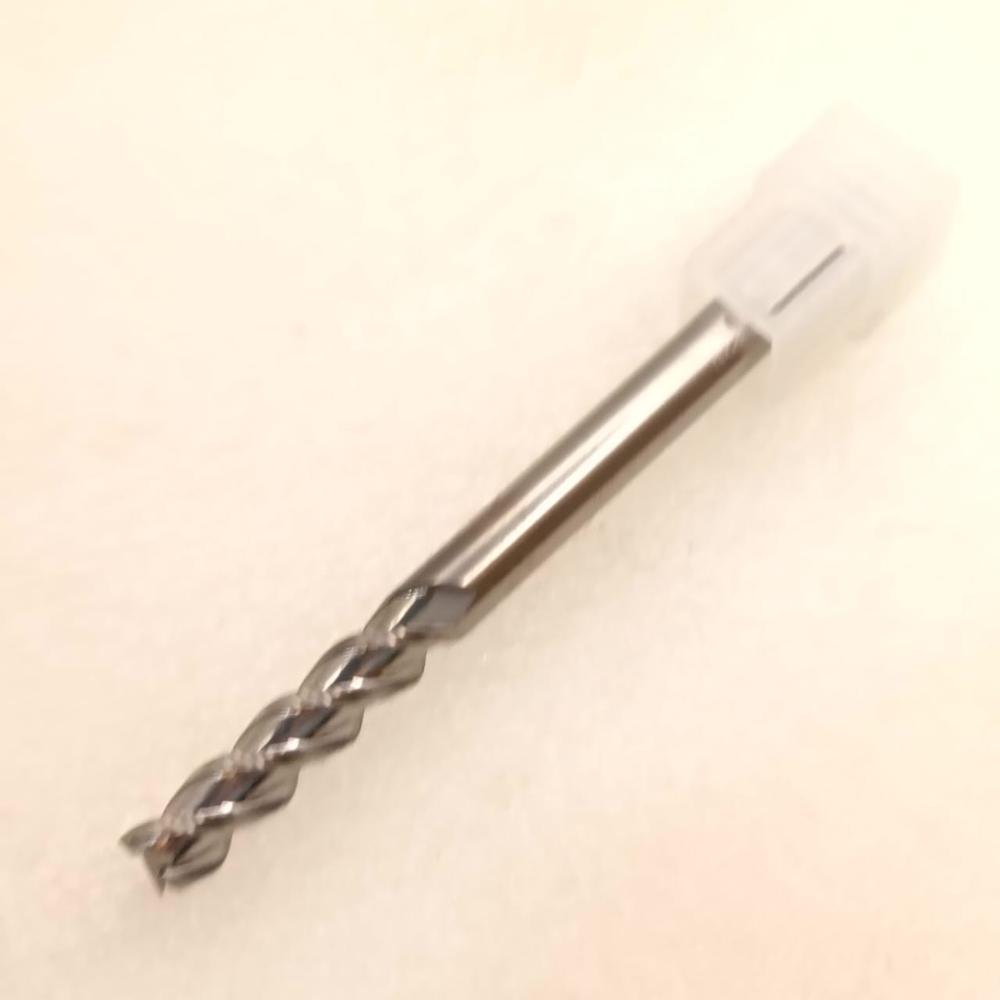

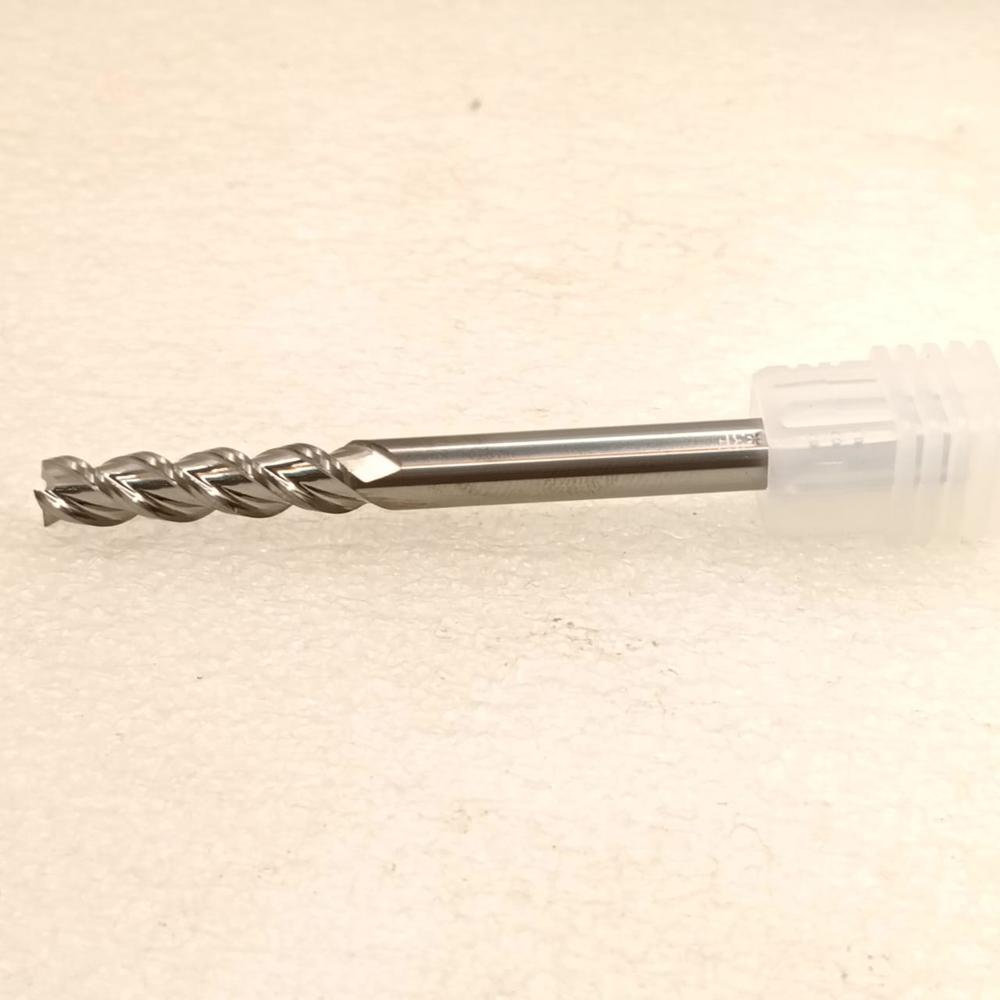

45ALE 2.0xD6x6x50-3f (Polished)

Name: 45ALE 2.0xD6x6x50-3f (Polished)
Brand: SUKHMANI TOTAL SOLUTIONS
Price: 643.0 INR
Availability: InStock

Price 643.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

45ALE 2.0xD6x6x50-3f (Polished) Specification

Machine Type
CNC Machining Center, Milling Machine

Cutting Accuracy
High Precision

Cutter Type
Flat End Mill

Cutting Speed
Recommended 200-300 m/min (material dependent)

Coating Type
Polished (Uncoated)

Features
Mirror Polished Flute, High Wear Resistance, Suitable for Aluminum and Copper Alloys

Operate Method
Automatic

Brooches Type
Polished Finish

Operation Type
Milling, Slotting, Grooving

Shape
Cylindrical

Hardness
>91 HRA

Material
Micro Grain Solid Carbide

Tool Type
Solid Carbide End Mill

Cutting Force
High

Cutting Capacity
2.0 mm Diameter

Coating
Polished

Drill Bits Types
Square End Mill (3 Flute)

Usage
MILLING, SLOTTING

Size
2 MM

Diameter
2.0 mm

Maximum Torque
Suitable for High-Speed Machining

Processing Type
CNC Milling

Length
50 Millimeter (mm)

Application
Finishing, Semi-Finishing, Profiling

Shank Diameter
6 mm

Helix Angle
45

Number of Flutes
3 Flutes

ISO Grade
K10/K20 Carbide

Tolerance
H6 (Shank)

Edge Type
Sharp Edge for Clean Surface Finish

Suitable Materials
Aluminum, Copper, Non-Ferrous Metals, Plastics

Chip Removal
Excellent Chip Evacuation Due to Polished Flute

Flute Length
6 mm

45ALE 2.0xD6x6x50-3f (Polished) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About 45ALE 2.0xD6x6x50-3f (Polished)

45ALE 2.0xD6x6x50-3F Polished is a high precision solid carbide end mill designed for aluminium, brass, copper, MS, EN8, EN19, and SS304 machining. This micro diameter tool with a 6mm shank offers excellent rigidity and stability during high-speed CNC operations. The 3-flute polished carbide design ensures smooth chip evacuation, reduces built-up edge, and delivers superior surface finish in non-ferrous and multipurpose materials. Its optimized flute geometry minimizes material sticking and enhances cutting efficiency, making it ideal for micro machining, fine slotting, and precision profiling applications. Widely used in automotive components, general engineering, and die and mould work, this tool ensures consistent performance and extended tool life. As part of premium carbide end mill tools, it is trusted by CNC cutting tools manufacturers and industrial cutting tools suppliers. SUKHMANI TOTAL SOLUTIONS, a leading CNC tools supplier in India, offers high quality carbide cutting tools with competitive pricing and expert support.

High Performance and Durability

Constructed from micro grain K10/K20 solid carbide, the 45ALE 2.0xD6x6x50-3f demonstrates superior hardness (>91 HRA) and excellent wear resistance. Its mirror-polished flute design and sharp edge profile ensure optimal chip removal and high accuracy during milling processes, making it a dependable choice for demanding tasks.

Versatile Applications in Precision Machining

This end mill is specifically designed for finishing, semi-finishing, slotting, and profiling operations in a variety of non-ferrous materials, including aluminum, copper, and plastics. The high helix angle and polished flutes provide flawless surface finishes and facilitate smooth, efficient machining, even at high speeds.

Optimized for CNC and Automatic Machining

With a cutting capacity of 2.0 mm diameter and 6 mm flute length, the tool fits perfectly in CNC machining centers and milling machines. The advanced geometry and polished finish reduce cutting force, enhance accuracy, and extend tool life, supporting continuous, cost-effective production cycles.

FAQ's of 45ALE 2.0xD6x6x50-3f (Polished):

Q: How does the polished flute design benefit milling with the 45ALE 2.0xD6x6x50-3f end mill?

A: The mirror-polished flute enables exceptional chip evacuation, which minimizes heat buildup and reduces the risk of material sticking. This results in smoother cutting, improved surface finish, and longer tool life, especially when machining aluminum, copper, and non-ferrous metals.

Q: What materials are best suited for the 45ALE 2.0xD6x6x50-3f end mill?

A: This end mill is optimized for processing aluminum, copper, non-ferrous metals, and various plastics. Its sharp edge and high helix angle facilitate efficient cutting and clean surface finishes on these softer, ductile materials.

Q: When should this end mill be used during the manufacturing process?

A: The 45ALE 2.0xD6x6x50-3f is most effective during finishing, semi-finishing, profiling, and slotting operations, especially where high precision and a clean surface are essential. It is designed for use in the later stages of part production for best results.

Q: Where can this end mill be operated for optimal performance?

A: This tool is engineered for use in CNC machining centers and milling machines, supporting both automatic and high-speed processing. Environments that require stable clamping and precise tool holding are ideal for achieving the best performance.

Q: How do I achieve high precision with this end mill?

A: To maximize precision, use a machine with tight tool-holding tolerance, follow the recommended cutting speed of 200-300 m/min (depending on the material), and ensure proper cooling and chip removal. The tool's H6 shank tolerance and optimized geometry support superior accuracy.

Q: What is the recommended process for using this end mill in slotting and grooving?

A: For slotting and grooving tasks, align the flute axis parallel to the intended cut, utilize appropriate feeds and speeds for the material, and allow the polished flutes to effectively clear chips. Consistent lubrication or air cooling may further enhance chip evacuation and surface quality.

Q: What benefits does this solid carbide end mill provide over traditional tools?

A: Compared to traditional unpolished or steel tools, this end mill offers higher wear resistance, superior surface finish, and improved productivity. Its polished surface and carbide construction make it suitable for high-speed, high-precision machining with reduced downtime for tool changes.
