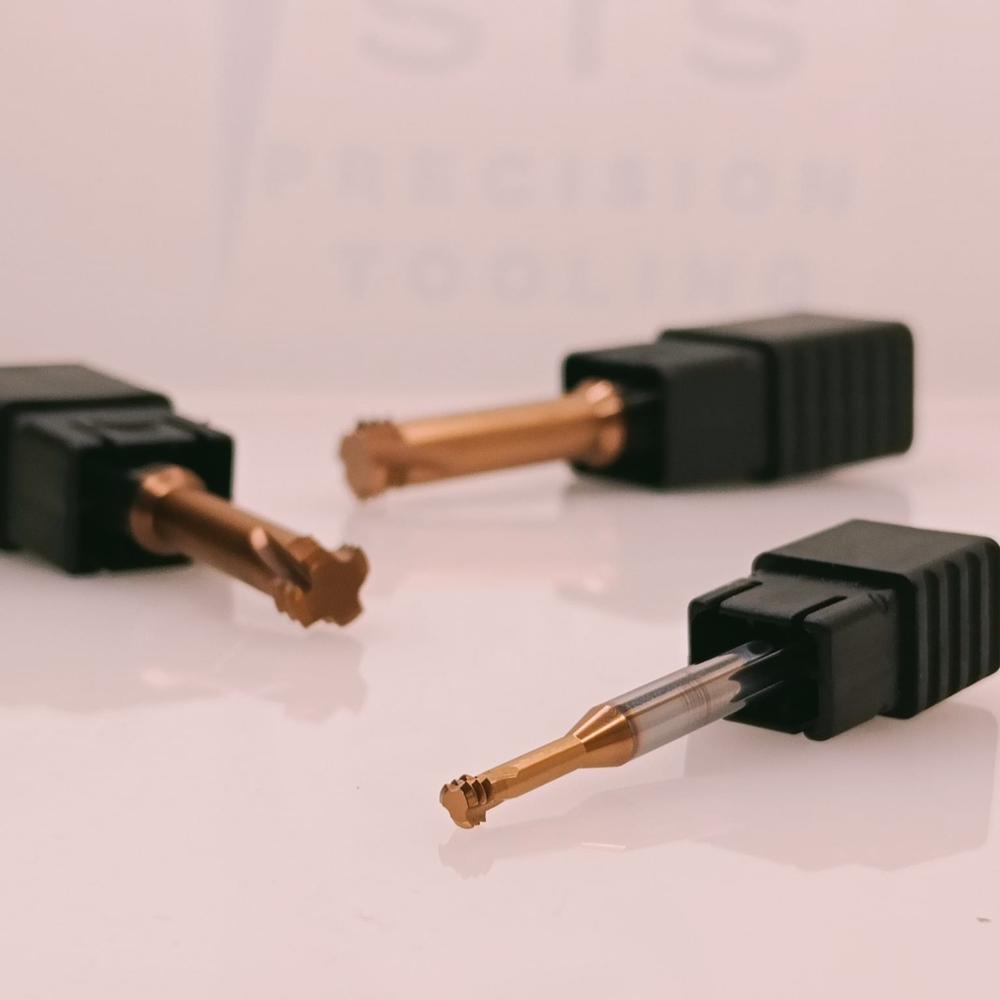

THR SM 1.0x0.25*D4

Name: THR SM 1.0x0.25*D4
Brand: SUKHMANI TOTAL SOLUTIONS
Price: 2871.0 INR
Availability: InStock

Price 2871.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

THR SM 1.0x0.25*D4 Specification

Shape
Round

Coating
Uncoated

Cutter Type
Single Flute

Operate Method
Automatic or manual feed

Usage
THREADING

Features
High precision, long tool life, minimal run-out

Cutting Capacity
0.25 mm

Tool Type
Micro Drill Bit

Length
38 mm

Material
Carbide

Cutting Force
Low

Drill Bits Types
Through Hole Reflow (THR)

Operation Type
Drilling

Hardness
HRC 92.5

Cutting Accuracy
0.01 mm

Machine Type
CNC, SMT, PCB Drilling Machine

Cutting Speed
Designed for high RPM

Brooches Type
Micro Drill

Size
THR SM 1.0x0.25-D4

Diameter
0.25 mm

Maximum Torque
Optimal for micro drilling applications

Processing Type
Precision Machining

Usage
For PCB and SMT drilling

Heat Resistance
Up to 400C

Item Code
SM 1.0x0.25*D4

Packaging
Individual blunt resistant casing

Tip Angle
130

Application
Suitable for electronic circuit boards

Tolerance
Very low, engineered for microelectronics

Min. Drilling Depth
0.5 mm

Shank Diameter
1.0 mm

THR SM 1.0x0.25*D4 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About THR SM 1.0x0.25*D4

THR SM 1.0x0.25-D4 is a precision solid carbide thread milling cutter designed for accurate micro thread machining in CNC applications. Suitable for M1.0 threads with 0.25 pitch, this micro thread mill delivers exceptional thread accuracy, superior surface finish, and stable cutting performance in materials such as steel, stainless steel, and alloy components. Engineered with premium carbide grade and optimized cutting geometry, it ensures smooth chip evacuation, reduced tool wear, and extended tool life even in fine pitch threading operations. Its compact D4 shank provides enhanced rigidity and vibration control, making it ideal for precision engineering, electronics, die and mould machining, and micro component manufacturing. The advanced cutting design enables efficient threading with high dimensional accuracy and reliable performance. As part of premium carbide cutting tools, it is trusted by CNC cutting tools manufacturers and industrial cutting tools suppliers. SUKHMANI TOTAL SOLUTIONS, a leading CNC tools supplier in India, offers high quality precision carbide thread mills with competitive pricing and expert technical support.

Precision Engineering for Microelectronics

Designed for ultra-demanding micro drilling tasks, the THR SM 1.0x0.25*D4 micro drill bit sets new standards in accuracy and tool life. Its superior craftsmanship makes it perfect for PCB and electronic circuit board applications, guaranteeing exceptional hole quality and minimal deviation. Whether for prototype or mass production, this tool delivers!

Heat and Wear Resistance

With a heat resistance of up to 400C, this drill bit handles prolonged high-speed operations without losing sharpness. Its carbide construction ensures durability, while the uncoated, single flute edge minimizes clogging and enhances chip evacuation for distortion-free results.

User-Friendly & Versatile Operation

This micro drill accommodates both automatic and manual feeds, fitting seamlessly into CNC, SMT, and PCB drilling machines. Its robust shank and round shape allow for easy setup and swift operation, making it ideal for suppliers and traders working with advanced microelectronics technology.

FAQ's of THR SM 1.0x0.25*D4:

**Q: How should I use the THR SM 1.0x0.25*D4 micro drill bit for best results?**

A: For optimal performance, install the THR SM 1.0x0.25*D4 in a compatible CNC, SMT, or PCB drilling machine with a collet suitable for a 1.0 mm shank. Operate at high RPM as recommended for micro drilling. It performs well with both automatic and manual feed methods, ensuring precise holes with minimal run-out.

Q: What applications is this micro drill bit best suited for?

A: This drill bit is tailored for electronic circuit board manufacturing, including PCB through-hole reflow (THR) processes and microelectronics components assembly where extremely tight tolerances and high cutting accuracy (0.01 mm) are mandatory.

**Q: When should I replace the THR SM 1.0x0.25*D4 drill bit?**

A: Replace the drill bit when you notice diminished cutting performance or any deviation from its specified accuracy. Thanks to its high hardness and heat resistance, it generally provides a long tool life under recommended conditions.

Q: Where can this micro drill bit be used?

A: The THR SM 1.0x0.25*D4 is suitable for use in professional PCB manufacturing facilities, microelectronics workshops, research labs, and by electronics suppliers or traders looking for precision tools in India and beyond.

Q: What benefits does the individual blunt resistant case offer?

A: Each bit is packed in an individual blunt resistant casing, protecting the drill from physical impacts and maintaining its sharpness and geometry during storage and transit, thus prolonging tool life.

Q: What makes this micro drill bit stand out for PCB drilling?

A: It features a single flute, exceptional heat resistance, extremely tight tolerance, and a robust carbide body, ensuring high precision, longevity, and minimal run-out, all vital for today's microelectronics manufacturing.
