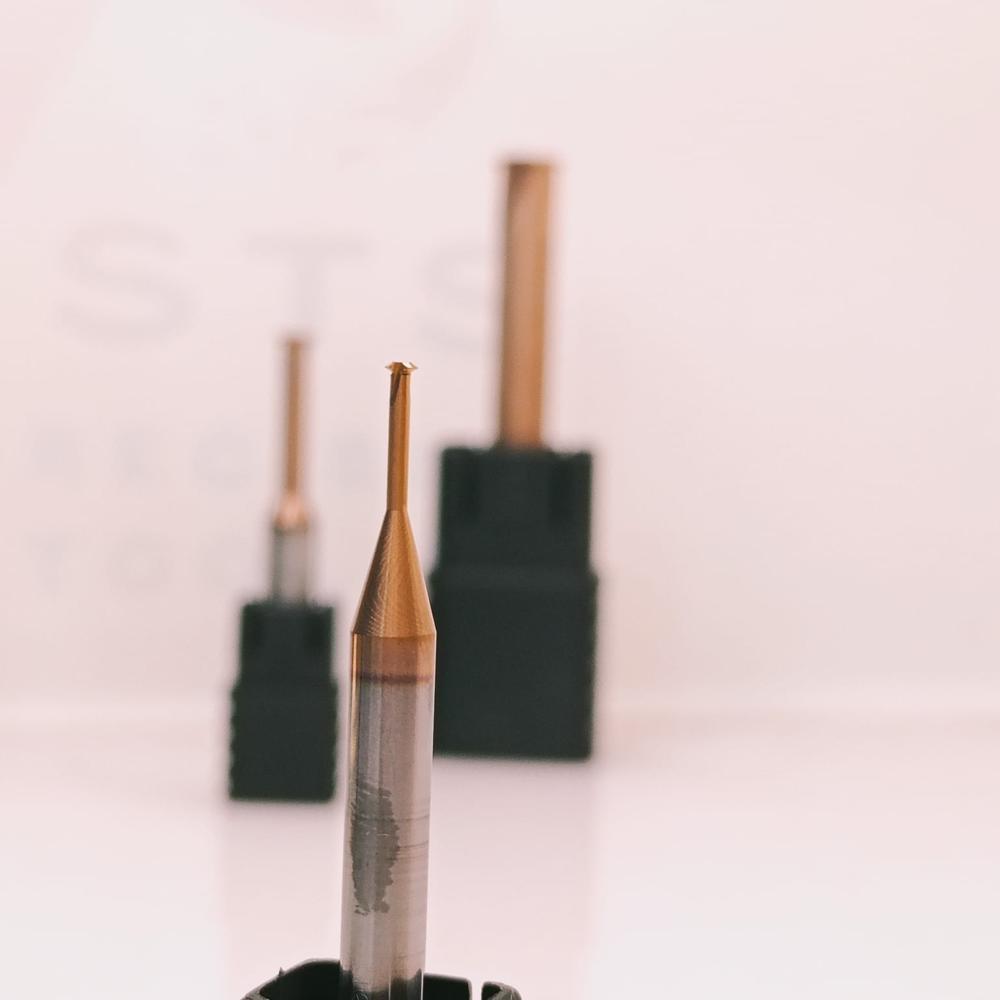

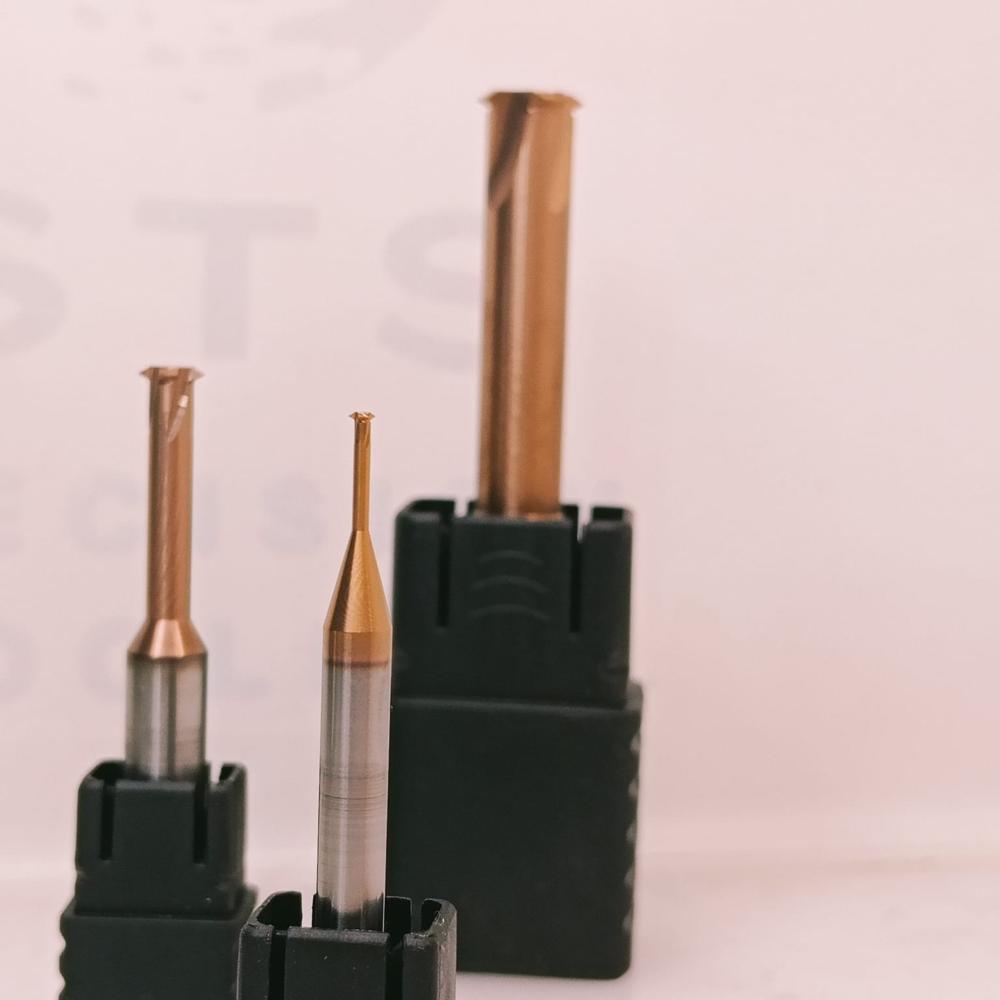

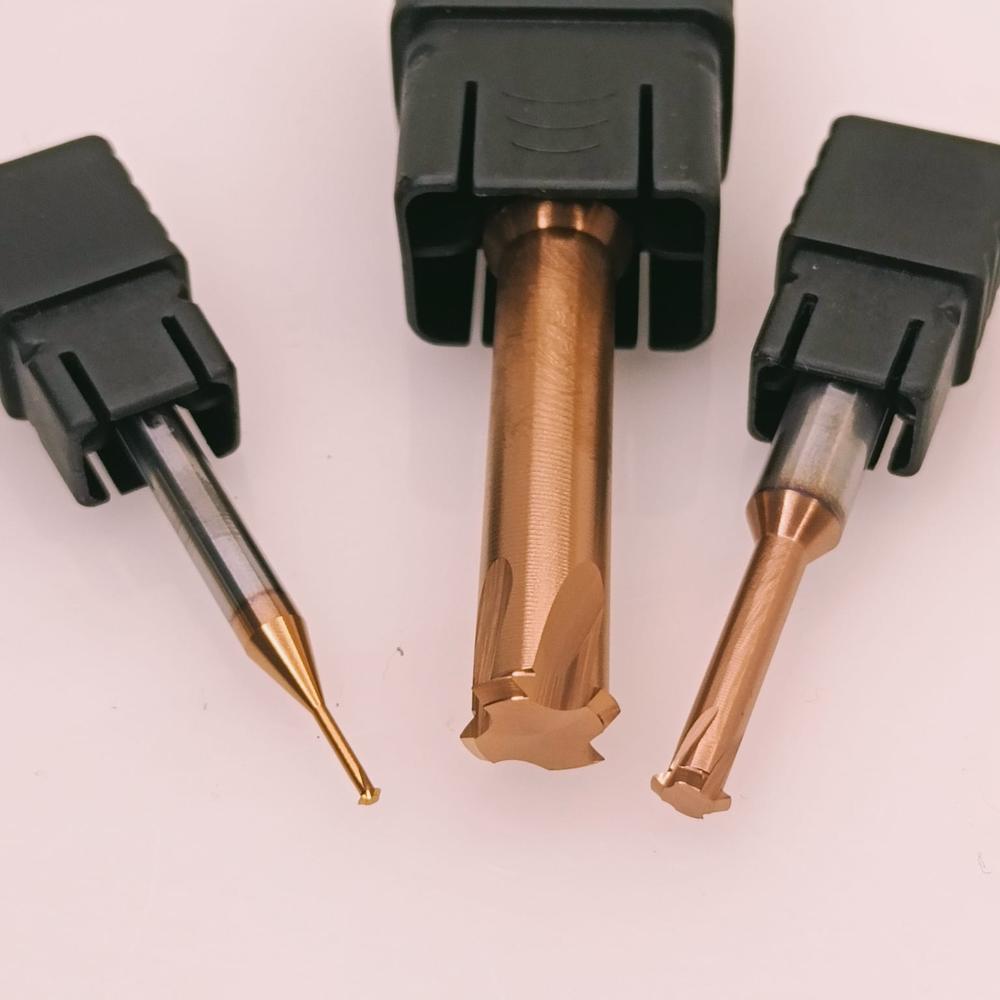

THR DM 20.0x1.5-D16 U1

Name: THR DM 20.0x1.5-D16 U1
Brand: SUKHMANI TOTAL SOLUTIONS
Price: 20419.0 INR
Availability: InStock

Price 20419.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

THR DM 20.0x1.5-D16 U1 Specification

Coating Type
TiAlN Coated

Material
Solid Carbide

Tool Type
Indexable Insert Drill

Shape
Round

Features
Straight Shank, Indexable Inserts, High Wear Resistance

Cutting Accuracy
High Precision 0.01 mm

Cutting Capacity
20.0 mm Diameter x 1.5 mm Pitch

Brooches Type
Milling Broach

Length
Overall Length 150 mm

Hardness
HRC 92-94

Cutting Speed
Recommended 80-120 m/min

Coating
Titanium Aluminum Nitride (TiAlN)

Operate Method
Automatic/Manual

Usage
THREADING

Cutter Type
Spiral Flute Cutter

Drill Bits Types
Straight Shank Twist Drill

Operation Type
Internal Coolant Supply

Machine Type
CNC Turning & Milling Machines

Cutting Force
High

Size
THR DM 20.0x1.5-D16

Diameter
20.0 mm

Maximum Torque
Optimized for Heavy Load

Processing Type
CNC Machining

Regrindable
Yes

Number of Flutes
2

Weight
Approx. 300 g

Model Number
DM 20.0x1.5-D16 U1

Shank Type
Straight Shank

Application
For Drilling and Boring of Alloy Steel, Cast Iron, and Stainless Steel

Chip Evacuation
Spiral Flute Design for Efficient Chip Removal

Insert Compatibility
U1 Type Indexable Inserts

Coolant Feature
Internal Coolant Channels

THR DM 20.0x1.5-D16 U1 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About THR DM 20.0x1.5-D16 U1

THR DM 20.0x1.5-D16 is a high performance solid carbide thread milling cutter designed for precise internal thread machining in CNC applications. Suitable for M20 threads with 1.5 pitch, this carbide thread mill delivers excellent thread accuracy, superior surface finish, and reliable cutting performance in materials such as steel, stainless steel, and alloy components. Engineered with advanced carbide grade and optimized cutting geometry, it ensures stable cutting, reduced tool wear, and extended tool life even in demanding machining conditions. The robust D16 shank provides enhanced rigidity and vibration resistance, making it ideal for automotive components, die and mould machining, aerospace parts, and heavy engineering industries. As part of premium carbide cutting tools, it is widely trusted by CNC cutting tools manufacturers and industrial cutting tools suppliers for efficient and accurate threading operations. SUKHMANI TOTAL SOLUTIONS, a leading CNC tools supplier in India, offers high quality precision carbide thread mills with competitive pricing, reliable supply, and expert technical support.

Advanced Design for Demanding Applications

Engineered with a spiral flute design and internal coolant channels, the THR DM 20.0x1.5-D16 U1 optimizes chip evacuation and cooling for high-performance drilling and threading. Its robust carbide construction and TiAlN coating ensure high wear resistance and operational durability-essential for repetitive tasks in CNC machining.

Versatile Machining Across Materials

This indexable insert drill is suitable for alloy steel, cast iron, and stainless steel, delivering consistent results due to its precise cutting accuracy of 0.01 mm. Compatible with U1 type inserts, it provides flexibility for varying threading demands, making it well-suited to both production and maintenance environments.

FAQ's of THR DM 20.0x1.5-D16 U1:

Q: How do the internal coolant channels of the THR DM 20.0x1.5-D16 U1 enhance performance?

A: The built-in internal coolant channels facilitate efficient heat dissipation and chip removal during high-speed drilling and threading operations, helping extend tool life and maintain accuracy.

Q: What applications is this tool most suitable for?

A: It is designed primarily for drilling and boring alloy steel, cast iron, and stainless steel, making it ideal for threading tasks in CNC turning and milling machines used in automotive, aerospace, and general engineering industries.

Q: When should I consider regrinding the THR DM 20.0x1.5-D16 U1 tool?

A: Regrinding is recommended when you notice signs of dullness, reduced cutting performance, or wear on the carbide edges to maintain precision and extend the tool's lifespan.

Q: Where can this indexable insert drill be used?

A: The drill is suitable for both automatic and manual CNC machinery, making it versatile for use in factory production lines, workshops, and machine shops handling alloys and hard metals.

Q: What is the benefit of the spiral flute design in this tool?

A: The spiral flute design improves chip evacuation, reduces clogging, and ensures smoother cutting action, especially during deep hole threading or when working with tough materials.

Q: How do I maximize the tool life and performance of this threading drill?

A: Use the recommended cutting speed of 80-120 m/min, ensure proper coolant flow, select compatible U1 type inserts, and monitor for tool wear to maintain optimal results.
