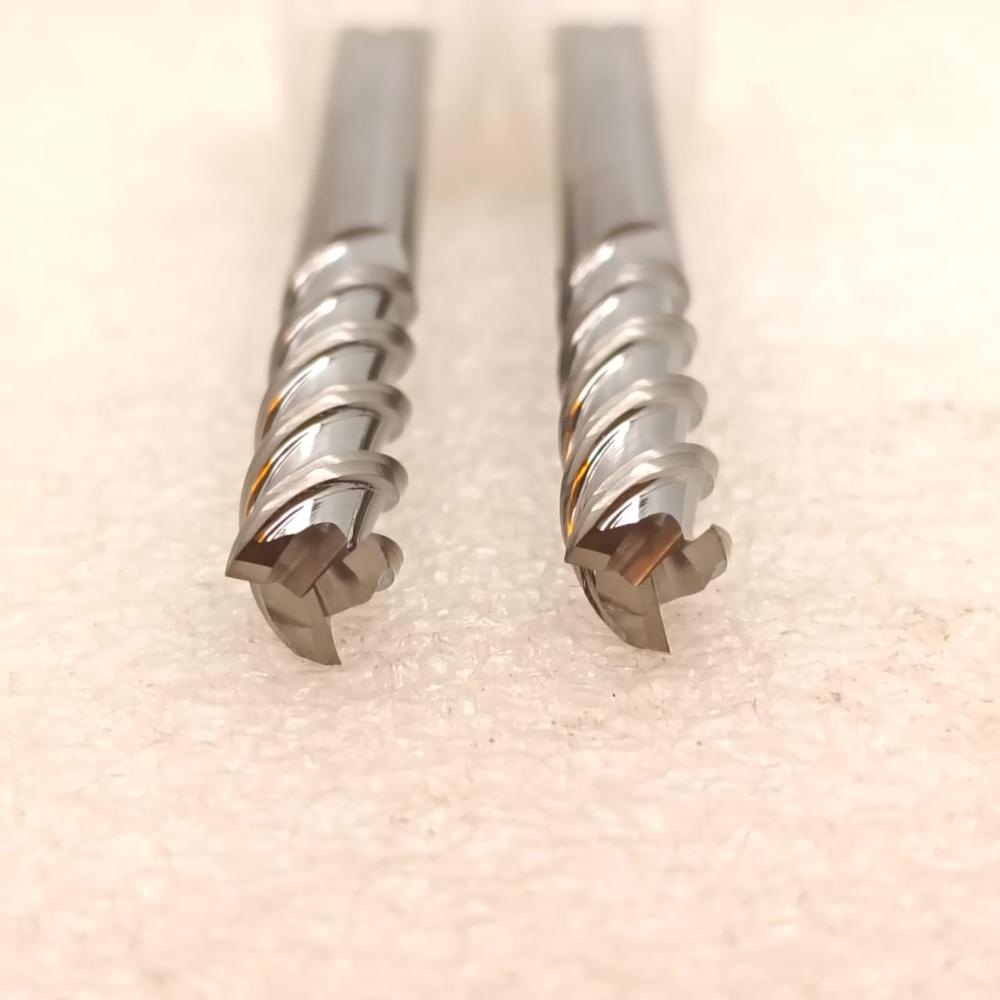

45ALE 4.0x12xD4x50-2f Polished

Name: 45ALE 4.0x12xD4x50-2f Polished
Brand: SUKHMANI TOTAL SOLUTIONS
Price: 338.0 INR
Availability: InStock

Price 338.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

45ALE 4.0x12xD4x50-2f Polished Specification

Machine Type
CNC Milling Machine, Machining Center

Coating
None / Polished Finish

Cutting Speed
Suitable for high speed machining

Features
Sharp edges, Wear-resistant, Precision-ground

Drill Bits Types
End Mill Drill Bit

Cutting Force
High

Tool Type
Carbide Endmill Cutter

Hardness
HRC 55-60

Operation Type
Finishing and Semi-finishing

Usage
MILLING, SLOTTING

Cutting Capacity
4.0 mm diameter

Material
Solid Carbide

Cutter Type
2 Flute

Coating Type
Polished/Uncoated

Operate Method
Automatic and Manual

Cutting Accuracy
0.01 mm

Shape
Cylindrical

Size
4 MM

Diameter
4.0 mm

Maximum Torque
High

Processing Type
Polished

Length
50 Millimeter (mm)

Weight
Approx. 15 g

Blade Size
12 mm length of cut

Application
Aluminium, Copper, Non-ferrous metals

End Type
Flat End

Chip Removal
Excellent due to polished flute

Usage
Slotting, Profiling, Side Milling

Shank Diameter
4 mm

Coolant Compatibility
Dry & Wet cutting supported

Recommended Feed Rate
Varies with material, typically 600-1200 mm/min

Surface Finish
Mirror Polished

Number of Flutes
2

Helix Angle
45

Tolerance
High Precision

Standard
DIN / ISO standard

45ALE 4.0x12xD4x50-2f Polished Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About 45ALE 4.0x12xD4x50-2f Polished

45ALE 4.0x12xD4x50-2F Polished is a high performance solid carbide end mill specially designed for aluminium, brass, copper, MS, EN8, EN19, and SS304 machining. Its 2-flute polished design ensures maximum chip evacuation, making it ideal for high-speed machining and heavy material removal in non-ferrous applications. The polished flute geometry reduces built-up edge and prevents material sticking, delivering excellent surface finish and consistent cutting performance. This tool is suitable for slotting, roughing, and profiling operations in CNC machining, especially where high feed rates are required. With a balanced design and optimized cutting geometry, it provides stable performance and longer tool life. Widely used in automotive, general engineering, and precision machining industries, it is trusted by CNC cutting tools manufacturers and industrial cutting tools suppliers. SUKHMANI TOTAL SOLUTIONS, a leading CNC tools supplier in India, offers premium carbide cutting tools with competitive pricing and expert technical support.

Precision and Performance

Engineered for high precision with a tight tolerance of 0.01 mm, this carbide end mill provides exceptional cutting accuracy, even at high speeds. The 45 helix angle and 2-flute design optimize chip evacuation, reducing heat buildup and extending tool life when machining non-ferrous materials.

Optimal for Aluminium and Non-Ferrous Metals

With its mirror-polished finish and sharp edges, the 45ALE end mill excels in aluminium, copper, and similar materials. The tool's geometry delivers clean, burr-free results, making it suitable for both finishing and semi-finishing applications in demanding industrial environments.

Versatile Operation

This end mill supports both dry and wet cutting, giving operators flexibility according to the work material and setup. Compatible with CNC milling machines and machining centers, it handles automatic and manual operations, accommodating a range of manufacturing processes and production scales.

FAQ's of 45ALE 4.0x12xD4x50-2f Polished:

Q: How should I use the 45ALE 4.0x12xD4x50-2f end mill for optimal performance?

A: For best results, use the end mill at recommended feed rates between 600-1200 mm/min, adjusting based on the material's hardness. Ensure correct clamping and consider using suitable coolant for enhanced tool life, especially during continuous or high-speed operations.

Q: What materials is this tool specifically designed to machine?

A: This end mill is engineered for aluminum, copper, and other non-ferrous metals, thanks to its sharp edges and polished flutes which help produce clean cuts and effective chip removal for these softer materials.

Q: When is it appropriate to use dry cutting versus wet cutting with this tool?

A: You can operate the tool in both dry and wet cutting modes. Dry cutting is often effective in high-speed operations on non-ferrous metals, while wet cutting can help reduce heat and prolong tool life, particularly during longer machining sessions.

Q: Where can this end mill be used?

A: It is suitable for CNC milling machines and machining centers, accommodating a variety of industrial and workshop environments for milling, slotting, and finishing tasks.

Q: What benefits do the mirror-polished flutes provide?

A: The mirror-polished flutes minimize material adhesion to the tool, significantly improving chip removal. This leads to smoother surfaces, less heat buildup, and reduced risk of tool clogging, especially when working with soft metals.

Q: How does the tool's design contribute to high-precision machining?

A: With high-precision manufacturing to DIN/ISO standards and a tolerance up to 0.01 mm, the tool's 2-flute, 45 helix angle geometry ensures efficient chip evacuation, stable machining, and exceptional dimensional accuracy.
