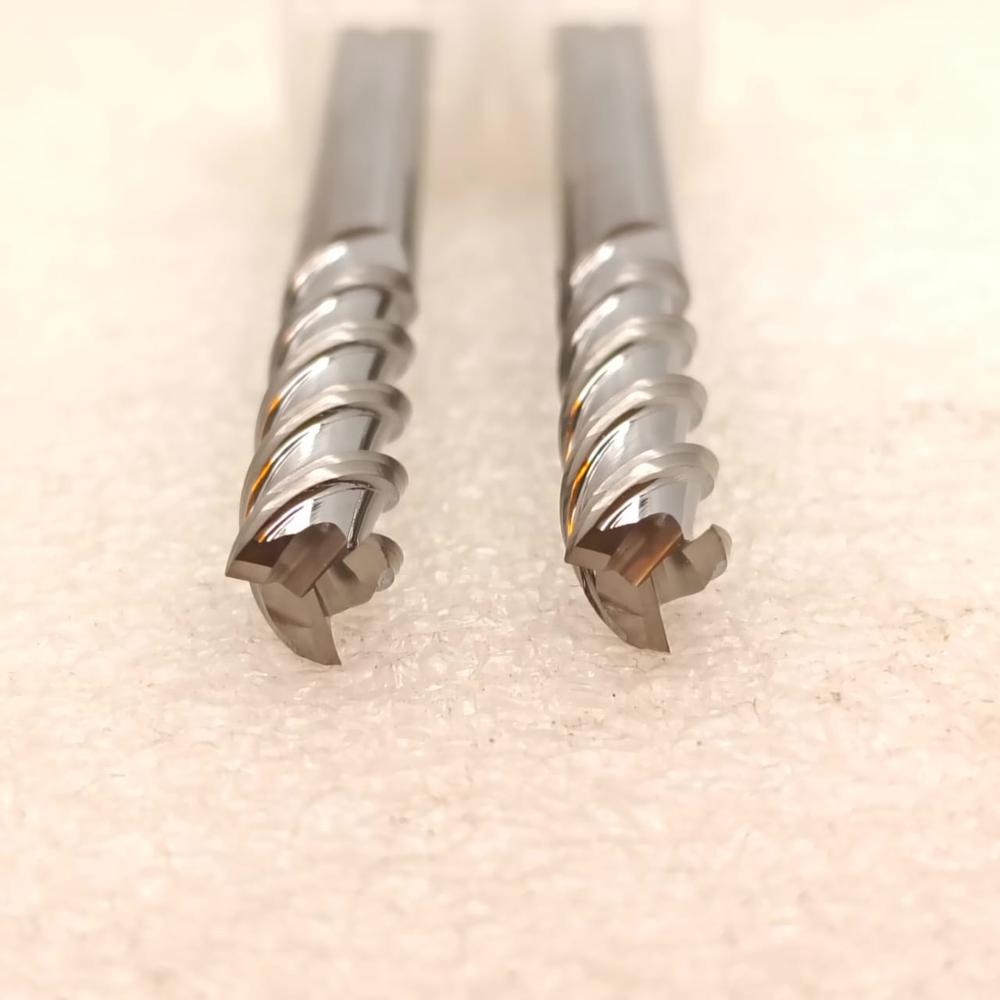

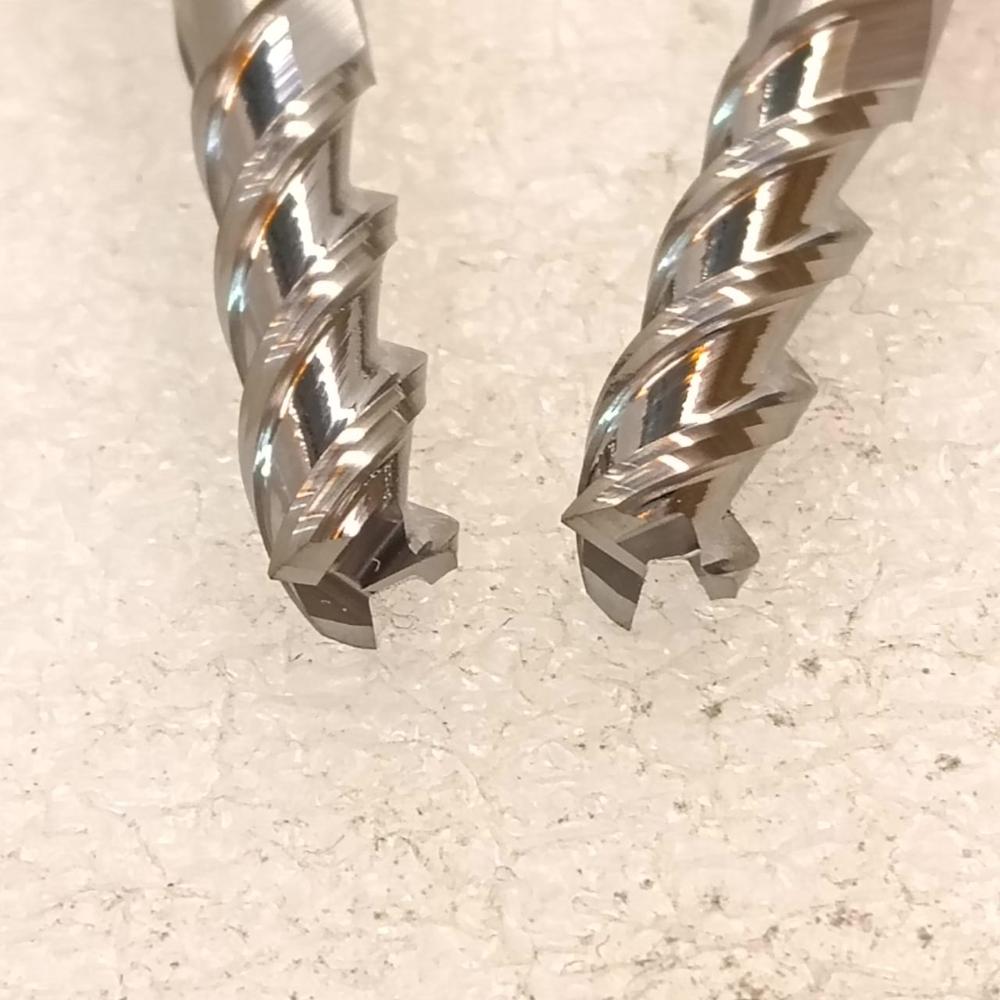

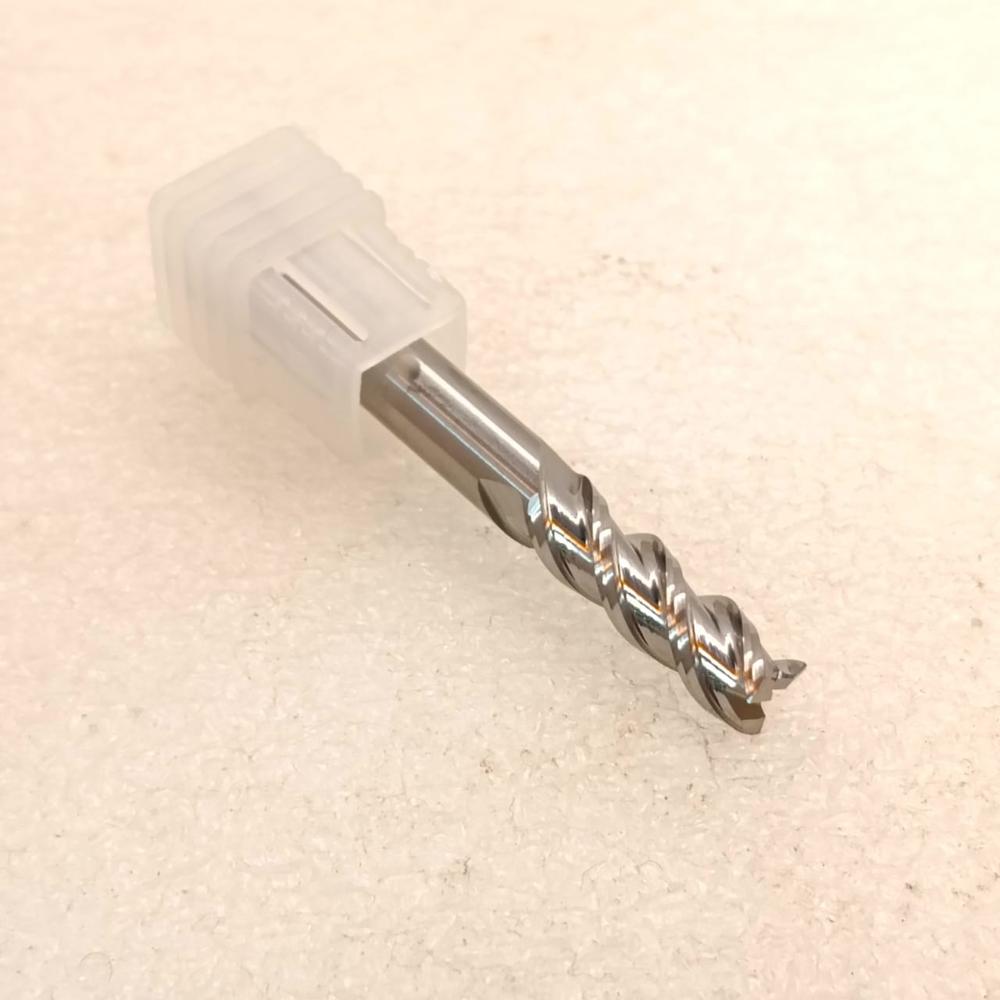

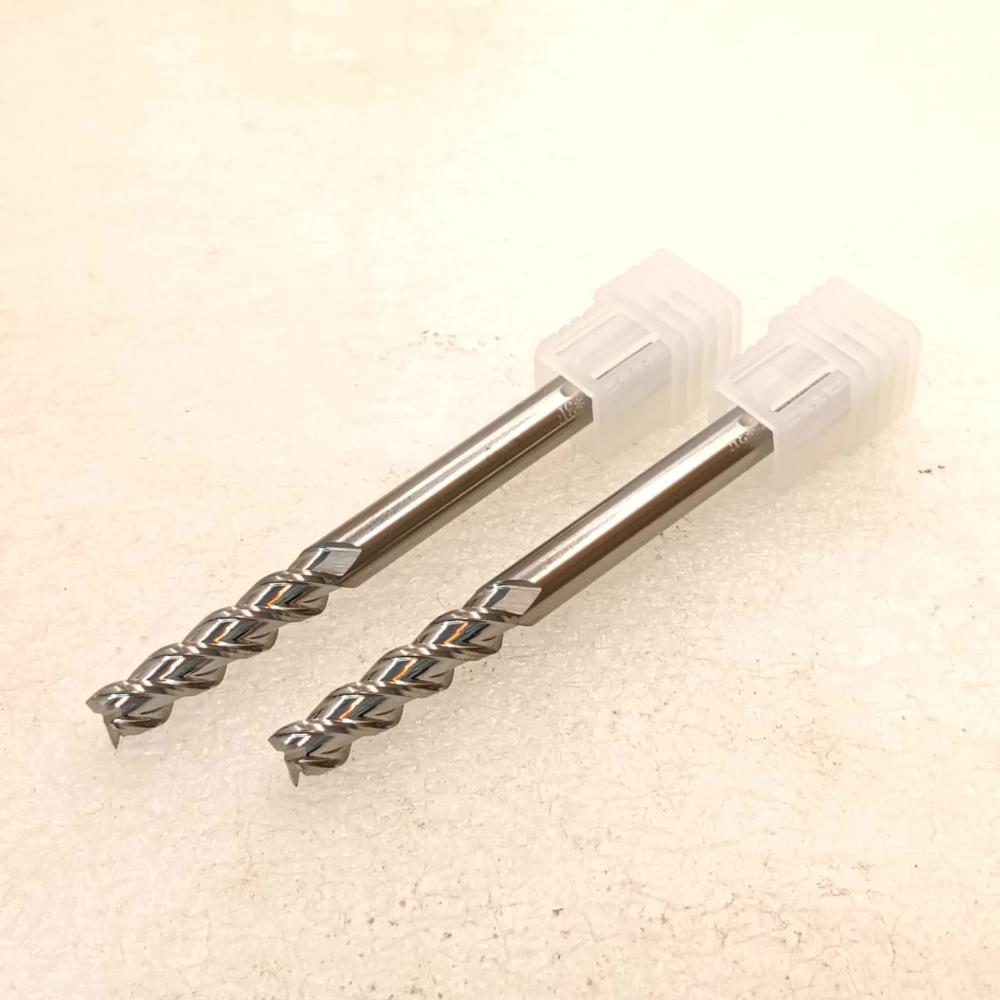

45ALE 12.0xD12x50x150-3f Polished

Name: 45ALE 12.0xD12x50x150-3f Polished
Brand: SUKHMANI TOTAL SOLUTIONS
Price: 5821.0 INR
Availability: InStock

Price 5821.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

45ALE 12.0xD12x50x150-3f Polished Specification

Cutting Capacity
12 mm Diameter

Material
Solid Carbide

Cutting Accuracy
High Precision

Coating
Polished

Coating Type
None (Uncoated Polished)

Shape
Cylindrical

Machine Type
CNC and Conventional Machines

Tool Type
45ALE Carbide Endmill Drill

Cutting Speed
Up to 120 m/min (material dependent)

Hardness
HRC 55-60

Operation Type
Slotting, Drilling, Milling

Cutter Type
Endmill/Drill

Features
Mirror polish, long flute, 3 cutting edges

Cutting Force
High

Usage
MILLING, SLOTTING

Drill Bits Types
Solid Carbide Drill Bit

Brooches Type
3 Flute (3F)

Operate Method
Automatic or Manual

Size
12 MM

Diameter
12.0 mm

Maximum Torque
Suitable for Standard CNC Torque

Processing Type
Polished

Length
150 Millimeter (mm)

Coolant Compatibility
Compatible with external lubrication

Edge Type
Sharp, precision ground

Tolerance
h6 (Diameter)

Weight
Approximately 125g

Application
Suitable for steel, aluminum, cast iron, non-ferrous metals

Made in
India

Shank Diameter
12 mm

Blade Size
12 mm

Model Number
45ALE 12.0xD12x50x150-3f Polished

Flute Type
Straight flute, 3-flute design

Helix Angle
45

Surface Finish
Super mirror polished

45ALE 12.0xD12x50x150-3f Polished Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About 45ALE 12.0xD12x50x150-3f Polished

45ALE 12.0xD12x50x150-3F Polished is a high performance solid carbide end mill designed for aluminium, brass, copper, MS, EN8, EN19, and SS304 machining. Its large diameter combined with extra long overall length and extended flute design makes it ideal for deep cavity machining, heavy profiling, and high-speed CNC operations. This 3-flute polished carbide tool ensures smooth chip evacuation, reduces built-up edge, and delivers excellent surface finish in non-ferrous and multipurpose materials. The polished flute geometry minimizes material sticking and enhances cutting efficiency, making it suitable for automotive components, general engineering, and precision machining applications. As part of premium carbide end mill tools, it is widely trusted by CNC cutting tools manufacturers and industrial cutting tools suppliers for consistent performance and reliability. SUKHMANI TOTAL SOLUTIONS, a leading CNC tools supplier in India, offers precision carbide cutting tools with competitive pricing, reliable availability, and expert technical support for all industrial machining needs.

High-Performance Solid Carbide Construction

Manufactured from solid carbide, the 45ALE endmill drill provides outstanding rigidity and wear resistance. Its mirror-polished, uncoated surface drastically reduces friction, allowing for smoother chip evacuation and longer tool life. This construction ensures consistent high-precision results in various machining environments.

Versatile Machining Applications

Designed for slotting, drilling, and milling, this tool supports a range of operations on materials like steel, aluminum, cast iron, and non-ferrous metals. The 3-flute, straight flute geometry ensures clean cuts and efficient chip removal, while the sharp edges and h6 tolerance guarantee exceptional dimensional accuracy.

Precision Engineering for a Superior Finish

The 45ALE endmill features a helix angle of 45, contributing to a smoother cut and better surface finish. Its high cutting accuracy, mirror polishing, and long flute design make it ideal for high-precision CNC processes or conventional machines demanding immaculate finishes.

FAQ's of 45ALE 12.0xD12x50x150-3f Polished:

Q: How can the 45ALE 12.0xD12x50x150-3f Polished endmill be used in machining operations?

A: This endmill is suitable for milling, slotting, and drilling tasks on a wide range of metals such as steel, aluminum, cast iron, and non-ferrous materials. It efficiently performs both roughing and finishing operations on CNC and conventional machines.

Q: What benefits does the super mirror-polished finish provide?

A: The mirror-polished finish significantly reduces chip adhesion and surface friction, resulting in improved surface quality of the workpiece and extended tool life. It also helps to minimize heat buildup during high-speed cutting operations.

Q: When should I use the 3-flute straight flute design?

A: The 3-flute straight flute design is ideal when you require high cutting capacity, efficient chip removal, and dependable precision-especially in slotting and milling operations on challenging materials. It also enables clean machining of deep slots by reducing vibration.

Q: Where is the 45ALE 12.0xD12x50x150-3f Polished endmill manufactured?

A: This tool is manufactured in India, ensuring high-quality craftsmanship and adherence to strict industry standards for performance and durability.

Q: What is the recommended process for coolant application with this tool?

A: The endmill is compatible with external lubrication systems. Applying coolant externally during operation aids in chip removal and heat dissipation, further enhancing machining efficiency and prolonging tool life.

Q: How does the h6 diameter tolerance impact the accuracy of this tool?

A: The strict h6 tolerance means the tool's diameter is manufactured to very tight specifications, which guarantees high-precision cutting and consistency, essential for critical applications demanding tight dimensional control.

Q: What advantages does this endmill offer over standard-coated tools?

A: Its mirror-polished, uncoated finish reduces the chance of built-up edge and enables a finer surface on finished parts. The sharp, precision-ground edges enhance machining accuracy, making it especially useful for applications where a high-quality finish and reduced contamination are paramount.
